Applicable to the use of high torque and low speed
replacing traditional deceleration
devices.
Applications: Medical, PCB cleaning
process, Robots and other automated equipment, commonly
used in high torque and low
speed.
Benefits:
Volume saving, Light
weight.
Low Speed, High Torque.
High efficiency
planetary reducer, Precise position control can be
done.
產品規格：
| |

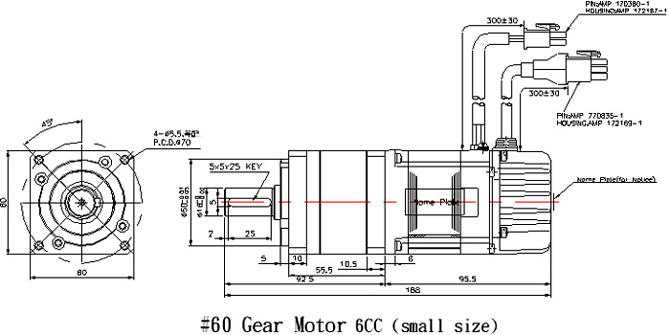

#60 Gear Motor |

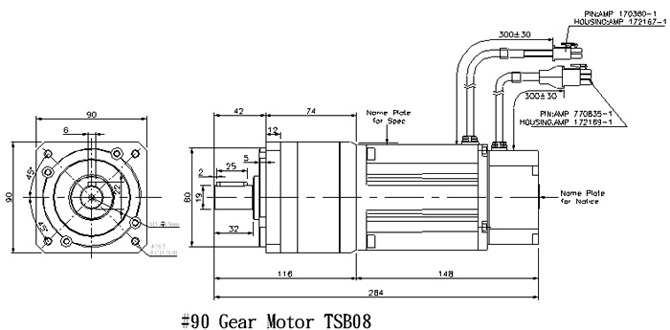

#90 Gear Motor |
| Item |
TSC06 |
6cc (small) |
TSB08 |
| Rated Power (W) |
400 |
750 |
| Rated Torque (N-M) |
12.0 |
22.7 |
| Max Peak Torque (N-M) |
36.0 |
68.1 |
| Rated Current (A) |
3.5 |
3.4 |
| Rated Speed (rpm) |
300 |
300 |
| Backlash (arcmin) |
15 |
15 |
| Noise (dB) |
<65 |
<65 |
| Encoder Resolution (Encoder) |
2500P/R
8192P/R |
2000P/R
2500P/R |
2500P/R
8192P/R |
| Permissible Radial Load (Max.Radial) |
724N(74kg) |
1810N(185kg) |
| Permissible Axial Load (Max.Axial) |
362N(37kg) |
905N(92.5kg) |
| Driver Set (TSTA Series) |
TSTA20C |
* To customize motors,please contact with us or our
agent. (1000rpm)(600rpm)
*
如需客製化產品請與我們聯繫 |
