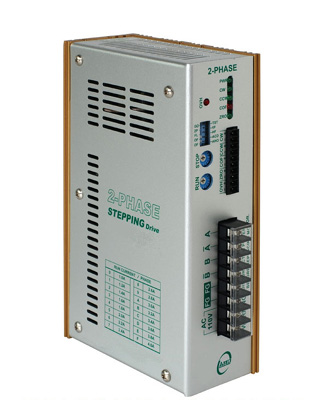

| 2 - Phase
Step Motor Driver |
|
MODEL |
DPYHHAB1400000000 |
|
POWER |
Single - Phase AC 110V±10%
50/60Hz |
|
Drive Current |
1.0A ~ 4.0A |
|
Method |
Constant Current
(Bipolar) |
|
Resolution |
Full Step (1.8°/s
200s/r) |
|
Half Step (0.9°/s
400s/r) |
|
Control mode |
Single - Pulse (1P) |
|
Two - Pulse (2P) |
|
Auto - Current - Down |
30~70% (16 Multi-Scale Current
Control) |
|
Max Pulse Speed |
60K Hz |
|
Pulse Width |
5us (Min) |
|
Direction respon |
10us (Min) |
|
Input Signal |
+4 ~ +10V < 20mA
|
|
Input Singnal Impedance |
220Ω |
|
Output Singnal |
Open Collector, 24V, 10mA (Max)
|
|
Noise Isolation |
Use of Photo Coupler |
|
Connection method |
Removable Connector |
|
Ambient Temperature |
0 ~ +40°C |
|
Ambient Moisture |
< 85% RH |
|
Case Color |
Color |
|
Dimension (mm) |
185(L) x 107(W) x 52(H) |
|
Weight |
950g |
