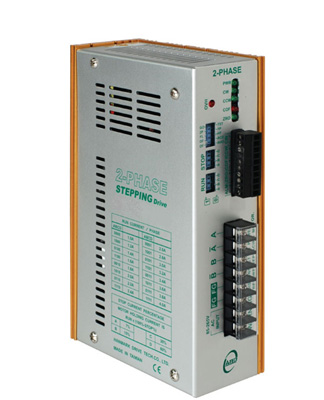

2 - Phase Step Motor Driver |
MODEL |
DPYHHAB2400000000 |
POWER |
Single - Phase AC85V ~ 265V
50/60Hz |
Drive Current |
1.0A ~ 4.0A |
1.5A ~ 6.0A |
Method |
Constant Current (Bipolar)
|
Resolution |
Full Step (1.8°/s 200s/r)
|
Half Step (0.9°/s 400s/r)
|
Control mode |
Single - Pulse (1P) |
Two - Pulse (2P) |
Auto-Current-Down |
30 ~ 70% (16 Multi-Scale Current
Control) |
Max Pulse Speed |
60K Hz |
Pulse Width |
5us (Min) |
Direction respon |
10us (Min) |
Input Signal |
+4 ~ +10V < 20mA
|
Input Singnal Impedance |
220Ω |
Output Singnal |
Open Collector, 24V, 10mA (Max)
|
Noise Isolation |
Use of Photo Coupler |
Connection method |
Removable Connector |
Ambient Temperature |
0 ~ +40°C |
Ambient Moisture |
< 85% RH |
Case Color |
Color |
Dimension (mm) |
185(L) x 107(W) x 52(H) |
Weight |
1020g |
