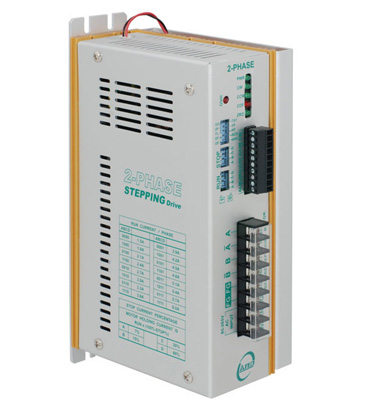

2 - Phase Step Motor
Driver |
|
MODEL |
DPYHHAB2600000000 |
|
POWER |
Single-Phase AC85V ~ 265V
50/60Hz |
|
Drive Current |
1.0A ~ 4.0A |
1.5A ~ 6.0A |
|
Method |
Constant Current (Bipolar)
|
|
Resolution |
Full Step (1.8°/s 200s/r)
|
|
Half Step (0.9°/s 400s/r)
|
|
Control mode |
Single - Pulse (1P) |
|
Two - Pulse (2P) |
|
Auto - Current - Down |
30 ~ 70% (16 Multi-Scale Current
Control) |
|
Max Pulse Speed |
60K Hz |
|
Pulse Width |
5us (Min) |
|
Direction respon |
10us (Min) |
|
Input Signal |
+4 ~ +10V < 20mA
|
|
Input Singnal Impedance |
220Ω |
|
Output Singnal |
Open Collector, 24V, 10mA
(Max) |
|
Noise Isolation |
Use of Photo Coupler |
|
Connection method |
Removable Connector |
|
Ambient Temperature |
0 ~ +40°C |
|
Ambient Moisture |
< 85% RH |
|
Case Color |
Color |
|
Dimension (mm) |
207(L) x 109(W) x 69(H) |
|
Weight |
1280g |
