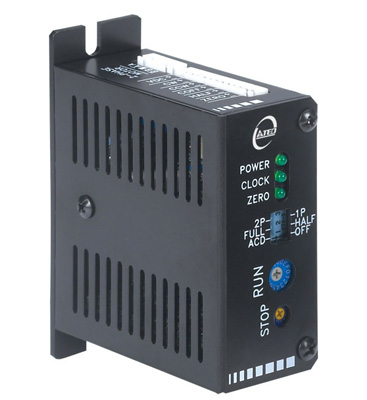

| 2 - Phase
Step Motor Driver |
|
MODEL |
DPYHHDB1200000000 |
|
POWER |
DC24V ~ 42V |
|
Drive Current |
0.8A ~ 1.5A ( 16 Multi-Scale
Current Control) |
|
Method |
Constant Current (Bipolar)
|
|
Resolution |
Full Step (1.8°/s 200s/r)
|
|
!@ |
Half Step (0.9°/s 400s/r)
|
|
Control mode |
Single - Pulse (1P) |
|
!@ |
Two - Pulse (2P) |
|
Auto-Current-Down |
20 ~ 60% |
|
Max Pulse Speed |
25K Hz |
|
Pulse Width |
15us (Min) |
|
Direction respon |
20us (Min) |
|
Input Signal |
+4 ~ +10V < 20mA
|
|
Input Singnal Impedance |
220Ω |
|
Output Singnal |
Open Collector, 24V, 10mA (Max)
|
|
Noise Isolation |
Use of Photo Coupler |
|
Connection method |
Removable Connector |
|
Ambient Temperature |
0 ~ +40°C |
|
Ambient Moisture |
< 85% RH |
|
Dimension (mm) |
75(L) x 98(W) x 34(H) |
|
Weight |
160g |
