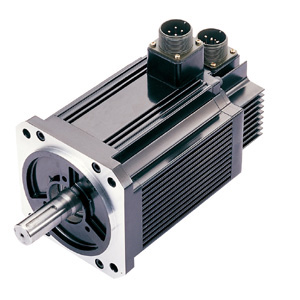

Servo Motor TSB13152C

TSB13152C



產品規格：

1(kgf R cm)=0.0980665 (N Rm) 1(gf R cm R s2) = 0.980665 (kg R cm2)
Item / Type

Unit
TSB13152C
Rated Output
RR
W
1500
Driver Set
TSTA50D
Rated Terminal Voltage
VT
V
200.3
Rated Torque
TR
N R m
4.782
Rated Current
IR
A
7.06
Rated Speed
NR
rpm
3000
Peak Torque
TP (N)
N R m
14.327
Peak Current
IP
A
21.2
Torque Constant
KT
N R m/A
0.74
Voltage Constant
KE
V/k rpm
77.5
Inertia
JM
Kg R cm2
6.26
Resistance
Ra
Ω
0.98
Inductance
La
mH
5.37
Mechanical Time Constant
TM
ms
1.14
Electrical Time Constant
te
ms
5.48
Weight
kgf
6.47
Insulation Class
B class (130°C)
Diagram
Brake Rated Voltage
V
VDC 24V ± 10%
Static Rubbing Torque
N R m
15
Inertia
kg R cm2
0.725
Consume Current
A
1
Weight
kgf
1.7
Diagram
Ambient Temperature
°C
0~40

* 如需客製化產品請與我們聯繫





网页所列产品内容仅供您参考，如有变更将不另行通知。
如您有任何技术问题或需要正式的产品外形尺寸图、规范表…等资料，请就近洽询我们当地的业务代表或直接以电子邮件联络我们。
